waveSTRATE
WaveSTRATE, a high-frequency substrate-less fluororesin CCL, has low transmission loss, especially in high-frequency bands such as millimetre waves.
Features
WaveSTRATE Variants and Key Features
- WaveSTRATE is available in standard low loss (26LB) and a thermally conductive low loss version (49TA).The fluoropolymer insulating layer is flexible, and it can be used like FPC.
- The G1S20544 with ultra-low Df, thermal diffusivity (12 W/mK in the XY direction) and high thermal conductivity (4.55W/mK) is also listed as a prototype in the list of characteristics below.
- It can be adjusted to the dielectric constant and physical properties according to customer request and the G1S20455 is a product developed with ultra-low Dk, Df and high tensile strength.
- The fluoropolymer insulating layer is flexible, and it can be used like FPC.
Copper Clad Laminate
Typical Properties
Properties | Unit | 26LB | G1S20455 | 49TA | G1S20544 | Test Method | |
|---|---|---|---|---|---|---|---|
Electrical Properties | Relative Permittivity Part Effective Relative Permittivity Dissipation Factor Breakdown Voltage Volume Resistivity Surface Resistivity | - - - kV Ω·cm Ω | 2.60 2.15 0.0012 3.82 2.03×10¹⁴ 1.45×10¹⁴ | 2.07 - 0.0005 - 1.8×10¹⁷ 6.3×10¹⁴ | 4.91 3.65 0.0004 5.13 5.8×10¹⁴ 8.4×10¹⁴ | 3.80 - 0.0002 10.87 6.01×10¹⁵ 2.77×10¹⁴ | Resonant cavity @10GHz Microstrip line @10GHz Resonant cavity @10GHz JIS K6249 JIS K6911 JIS K6911 |
Physical Properties | Peel Strength Solder Resistance Coefficient of Expansion Moisture Absorption Specific Gravity Elongation Tensile Strength Tensile Modulus Stress Dimension Stability1 (MD/TD) Dimension Stability2 (MD/TD) | N/cm Min ppm-Z ppm-X ppm-Y % - - - kV Ω·cm Ω | 2.60 2.15 0.0012 3.82 2.03×10¹⁴ 1.45×10¹⁴ | 2.07 - 0.0005 - 1.8×10¹⁷ 6.3×10¹⁴ | 4.91 3.65 0.0004 5.13 5.8×10¹⁴ 8.4×10¹⁴ | 3.80 - 0.0002 10.87 6.01×10¹⁵ 2.77×10¹⁴ | Resonant cavity @10GHz Microstrip line @10GHz Resonant cavity @10GHz JIS K6249 JIS K6911 JIS K6911 |

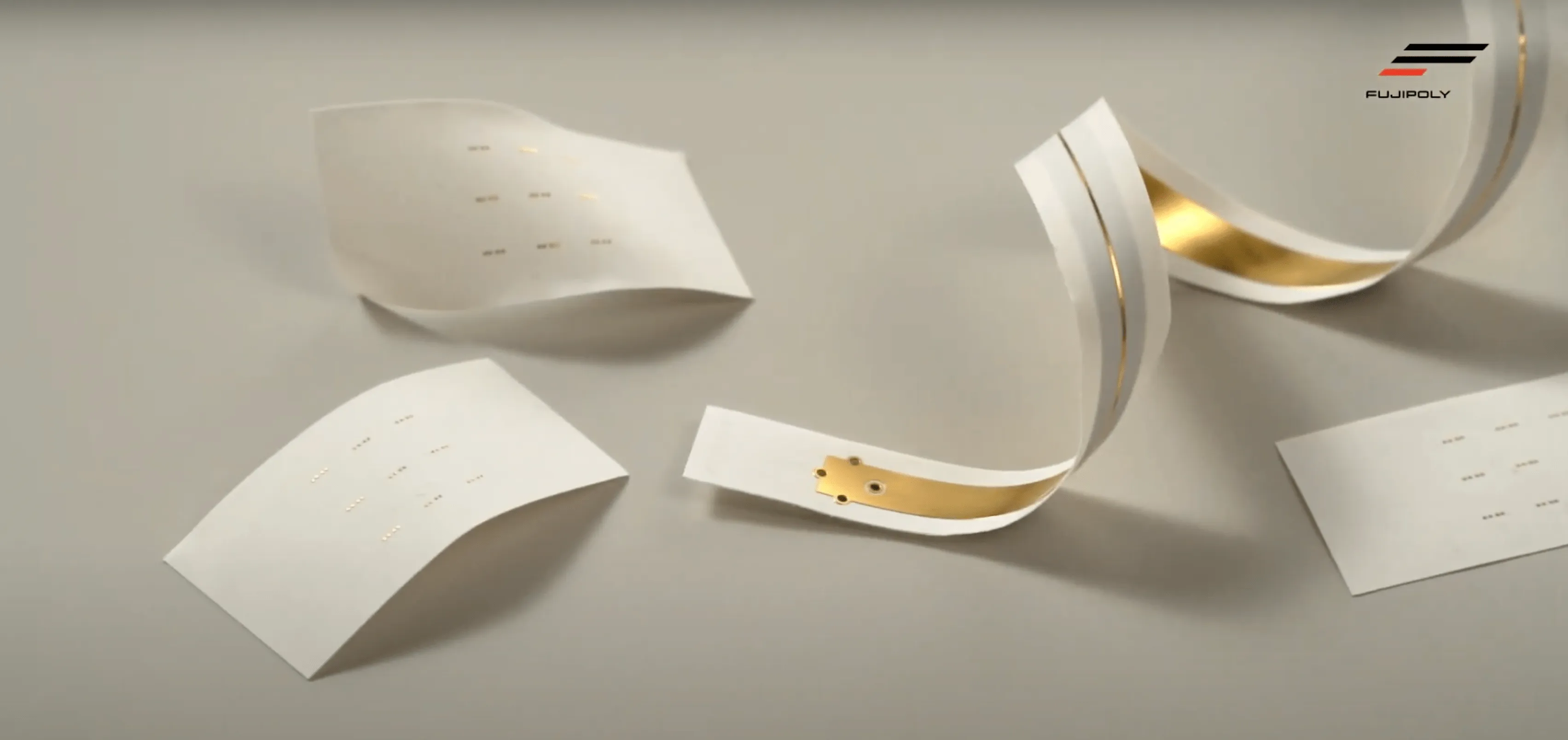

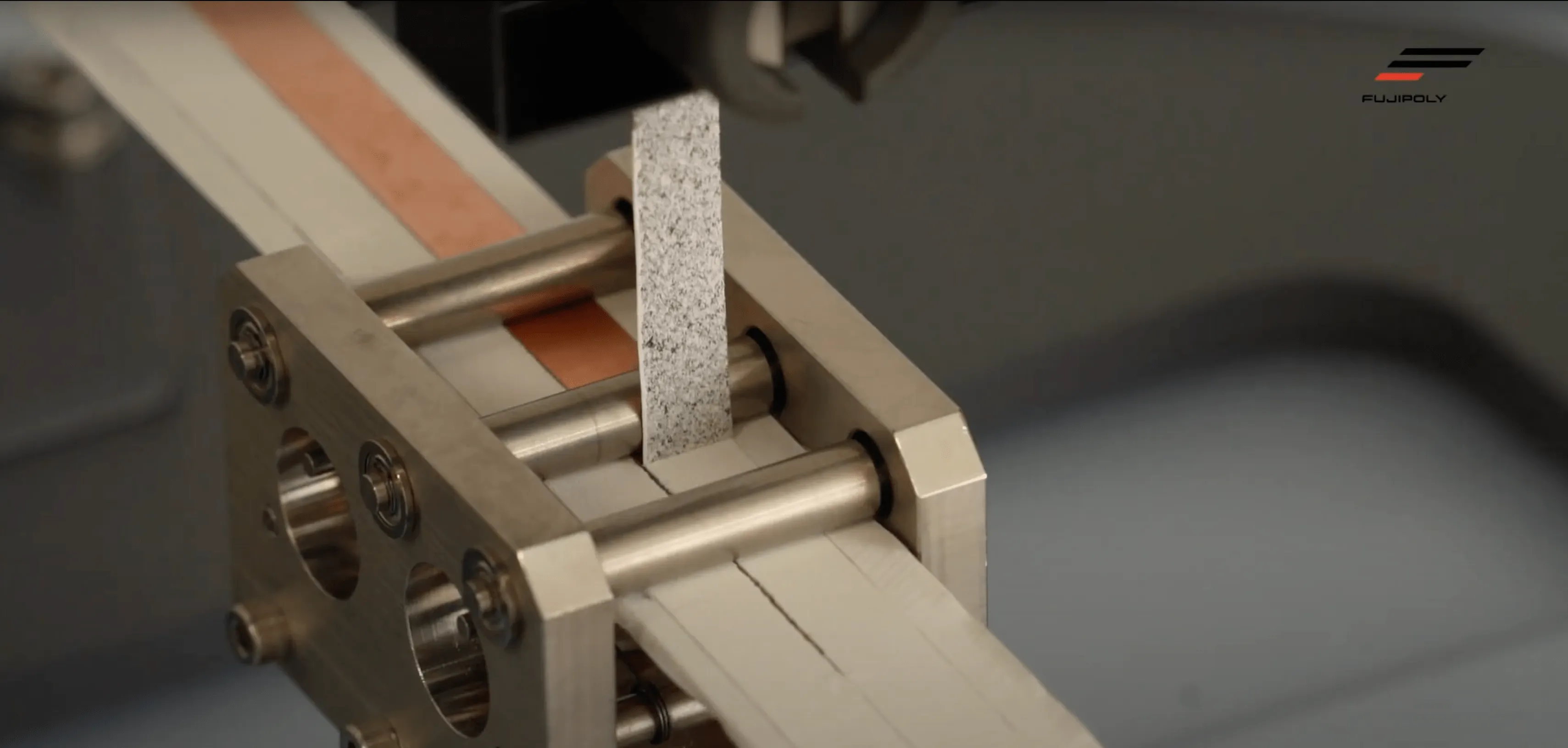

Product Showcase
Properties
Specific Gravity
Elongation
Tensile Strength
Post-Combuston Dimensional Change Rate

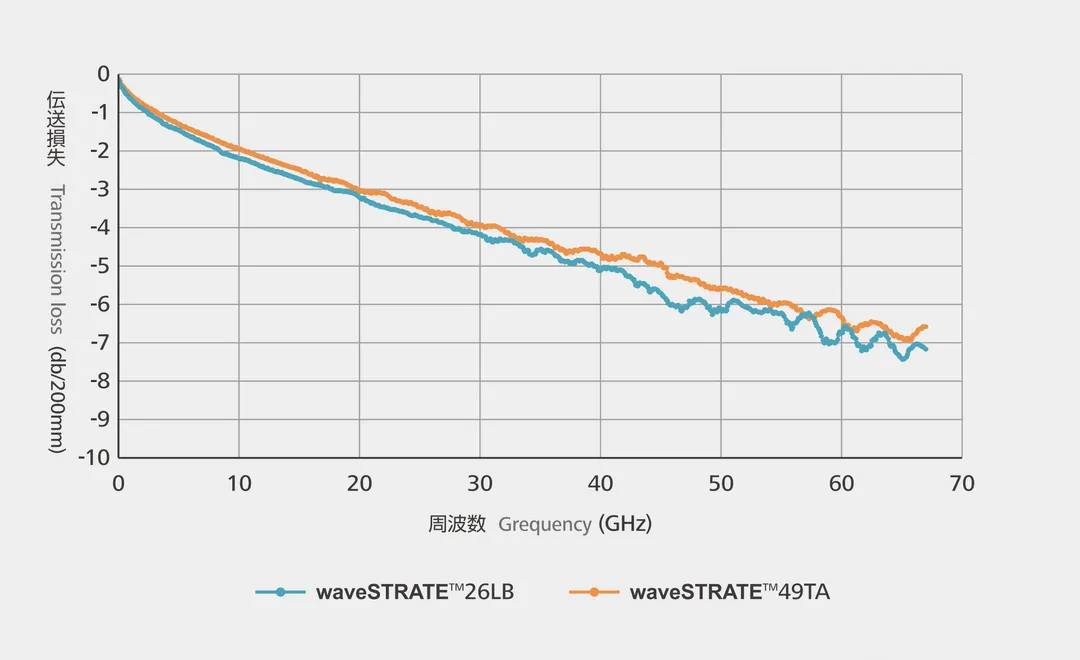

Transmission Loss
Regulatory Information
Our company has earned various certificates in the thermal interface material field. Some certifications show parent & sister companies, not FUJIPOLY Europe B.V.
IATF 16949:2016
Ensures automotive-grade quality and reliability, meeting global industry standards.

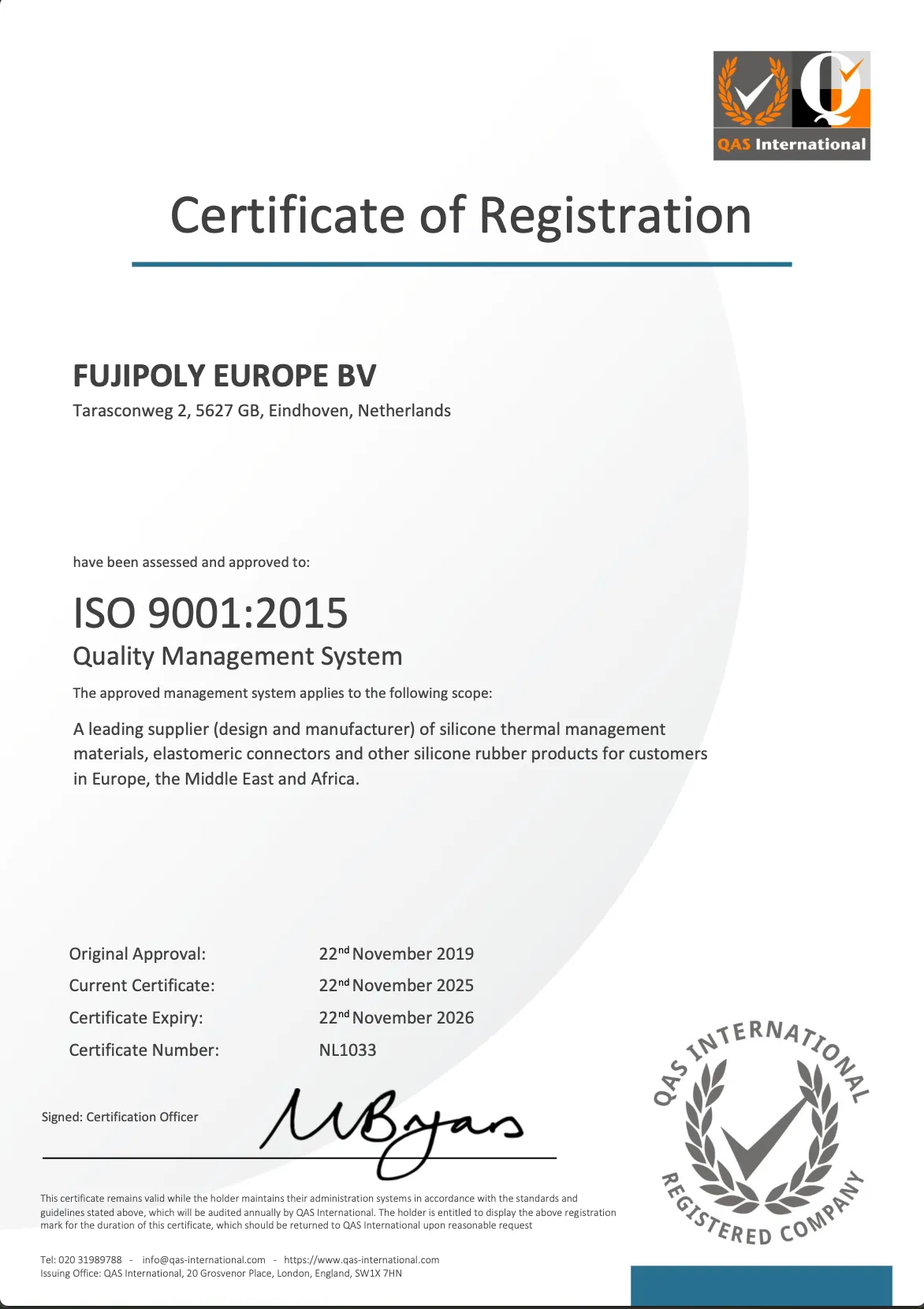

ISO 9001:2015
Guarantees a strong quality management system for consistent excellence and customer satisfaction.

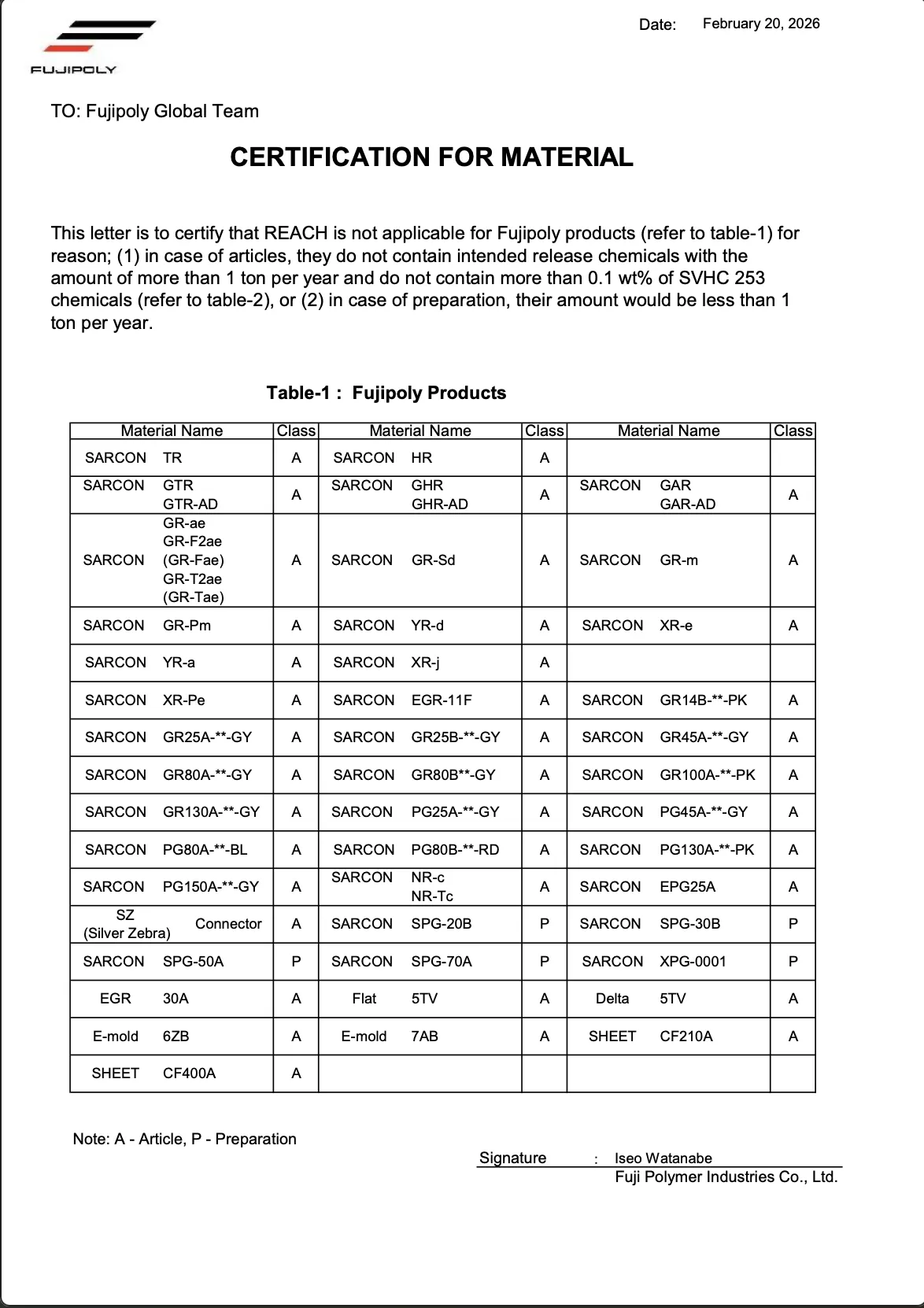

REACH
Confirms compliance with EU safety standards, ensuring environmentally safe materials.

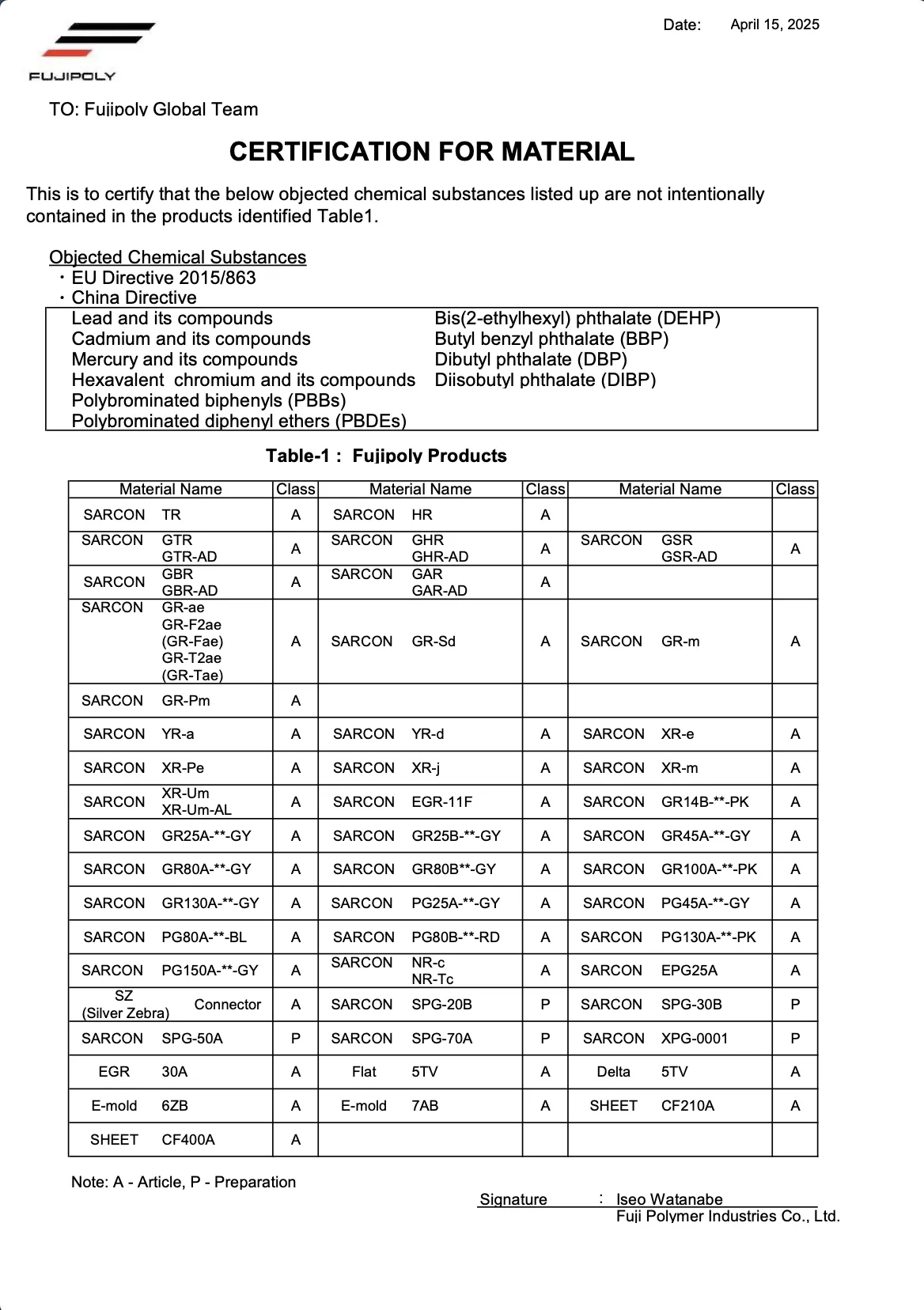

RoHS
Demonstrates a commitment to eco-friendly products free from hazardous substances.
Conflict Mineral Reporting
Supports ethical sourcing and responsible supply chains.

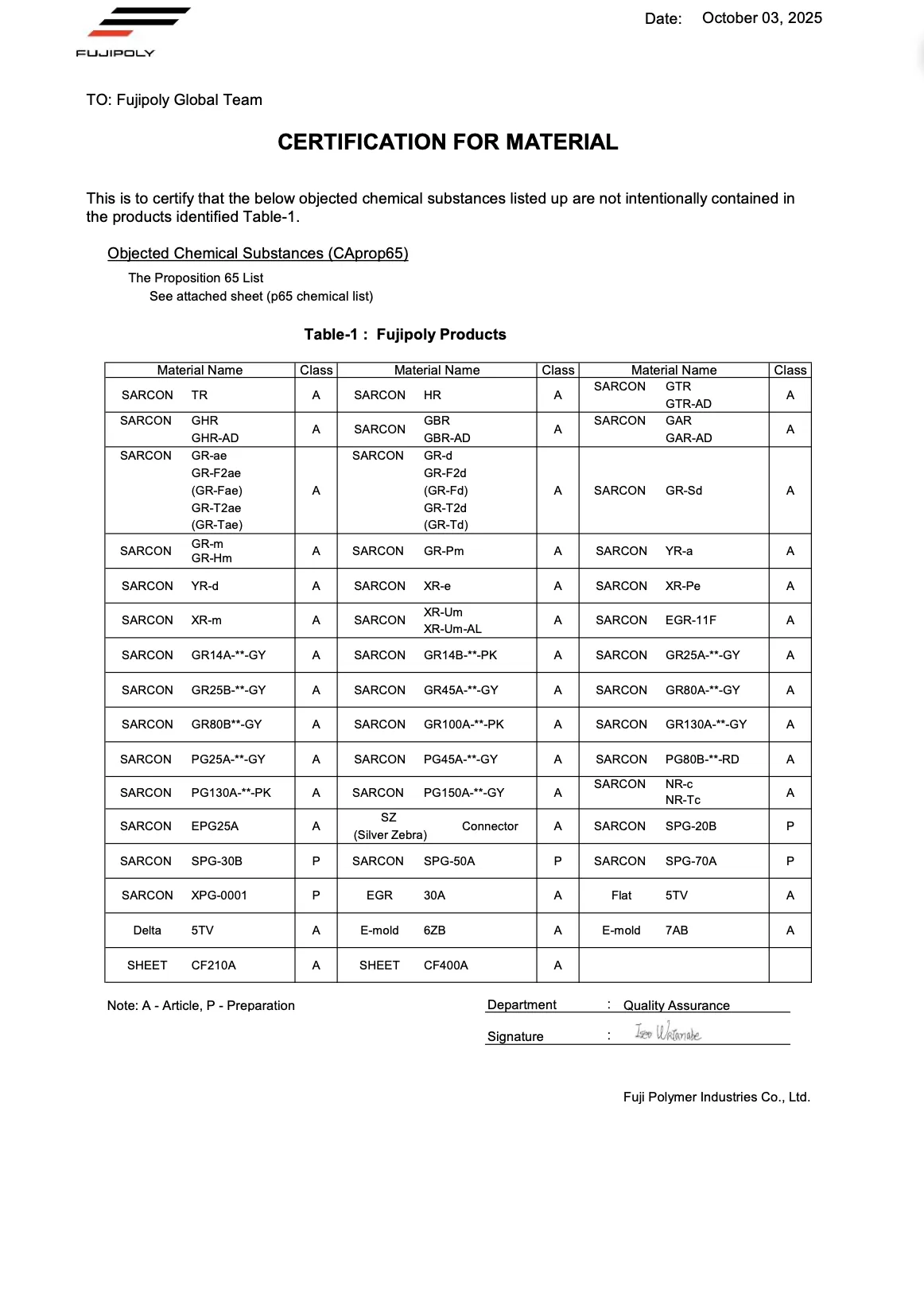

Prop 65
